RAWAcoustics
Finished pair

LX II tower speakers

A mid-size tower with well positioned twin 6.5" drivers and a ribbon tweeter. It balances embodied midrange vocals, while the lower frequencies blend tightly together. Achieving clear vocals with a ribbon tweeter is effortless.

Frequency range

15 Hz – 40 kHz · log scale
Response from 28 Hz; upper limit 35 kHz.

Construction

  • Solen capacitors with metal oxide resistors, Solen inductors
  • RAW ICE acoustic absorption and damping material installed
  • Silver wire internal wiring
  • Cardas lead-free silver solder
  • Handcrafted cabinet: 3/4" MDF sides and back, 3/4" MDF bracing every 6"
  • Hand-rubbed lacquer finish
  • Sound Fusion adjustable spikes as standard equipment

Finish

We apply a labour-intensive, multi-layered (10 coats!) lacquer finish, hand-polished to a vivid sheen that brings out the most intricate details of our standard real wood veneers. Assembled by hand, finished by hand, applied by hand: only the highest quality control standards are maintained from start to finish.

The premium level of components doesn't stop inside the LX II enclosure: with Sound Fusion adjustable spikes as standard equipment, the LX II reaches an overall level of component quality worthy of speakers at twice the price.

Measured

Measurements of the LX II: the on-axis frequency response from 500 Hz, the horizontal off-axis response at 15, 30 and 45 degrees, and the impedance with its phase.

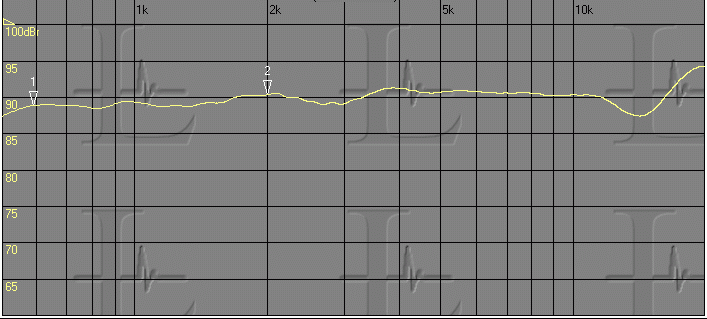

On-axis frequency response from 500 Hz
On-axis frequency response from 500 Hz

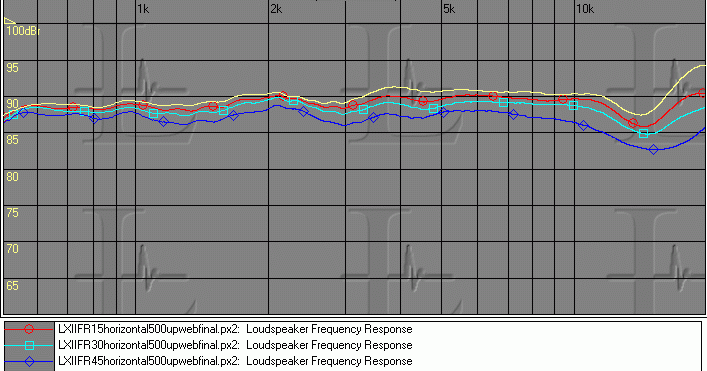

Horizontal off-axis response at 15, 30 and 45 degrees
Horizontal off-axis response at 15, 30 and 45 degrees

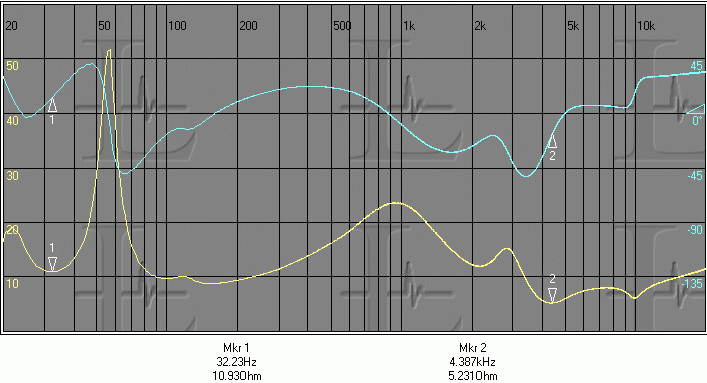

Impedance and phase; markers at 32 Hz (10.9 ohms) and 4.4 kHz (5.2 ohms)
Impedance and phase; markers at 32 Hz (10.9 ohms) and 4.4 kHz (5.2 ohms)
